April 3, 2004

Got into a bit of a productive time!

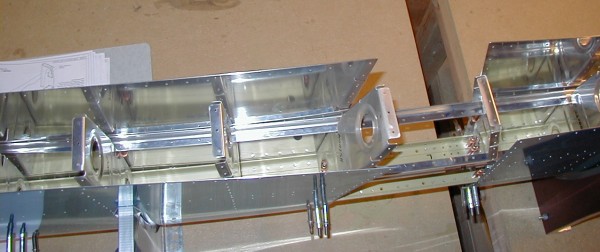

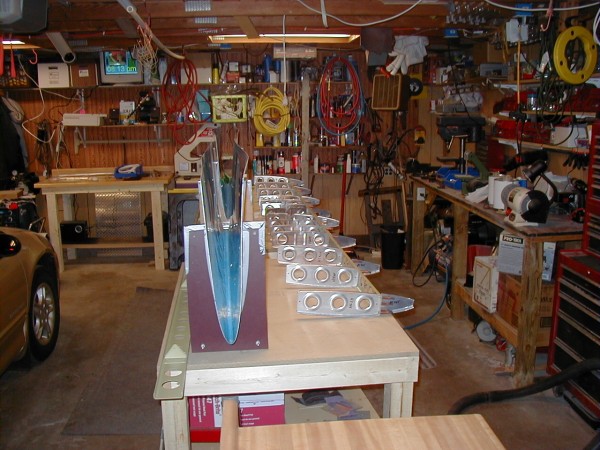

Assembled the spar and ribs to final drill the rib pieces and spar.

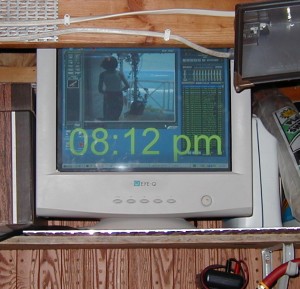

Here's a picture of my latest toy for the shop.  It's a WinTV-Radio card, model 401.  Has
a TV Tuner and an FM Tuner in it so I can now listen to MP3's, watch TV, and Listen to
the radio all on my PC.  As you can see, I also have an on-screen clock program running
so I can keep track of the time.

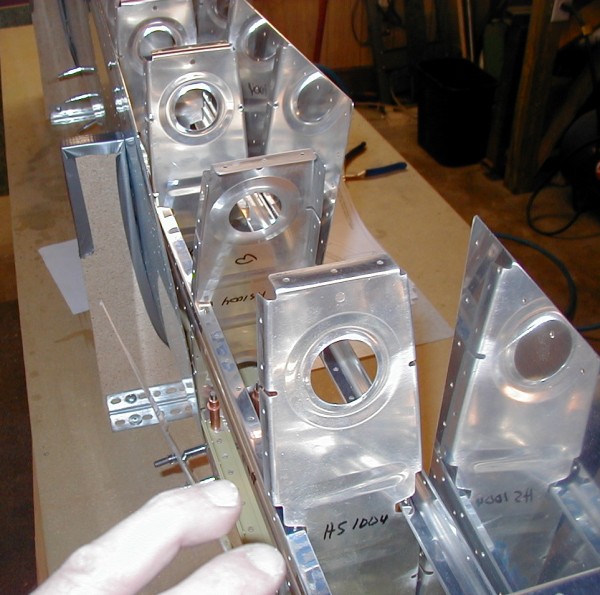

Still final drilling all rib pieces.

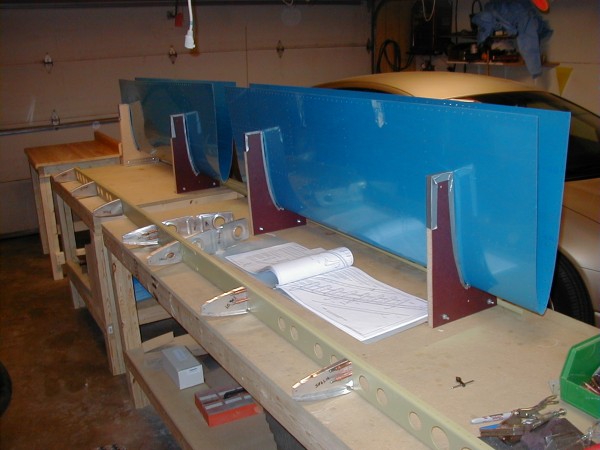

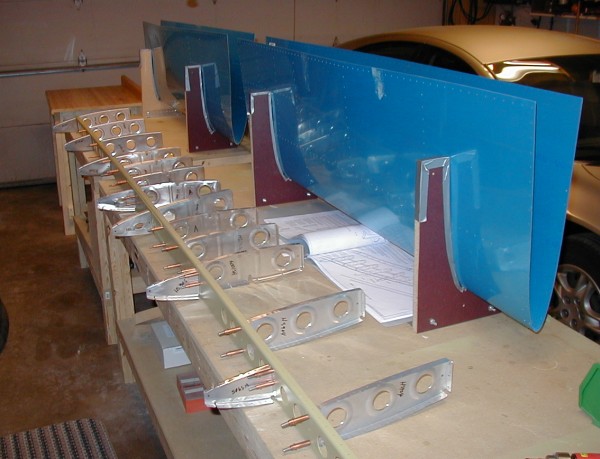

Line up the Stab sections.

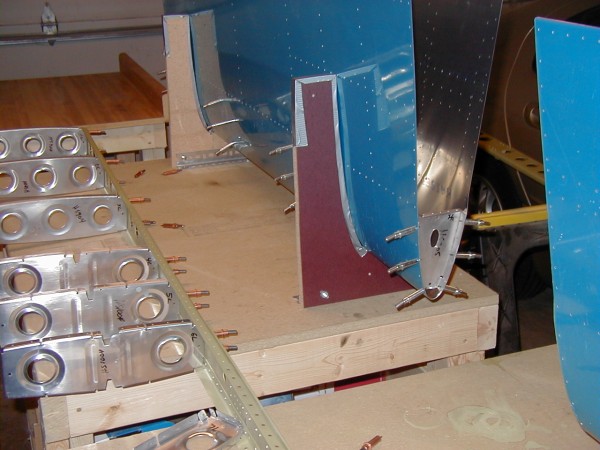

Start  by Cleco-ing in the nose ribs.



Stringer Placement photos

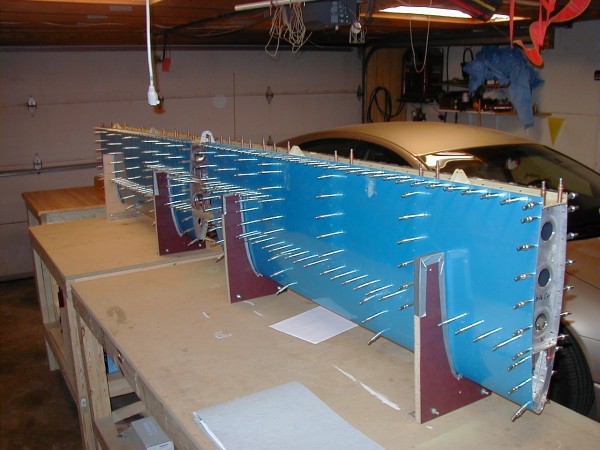

All Cleco'd up and looking good!

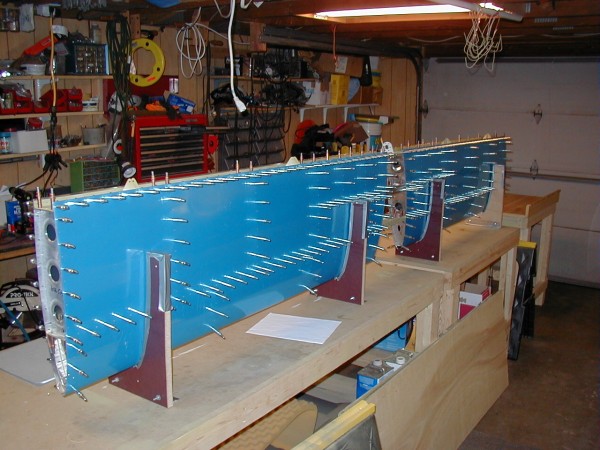

Another shot.

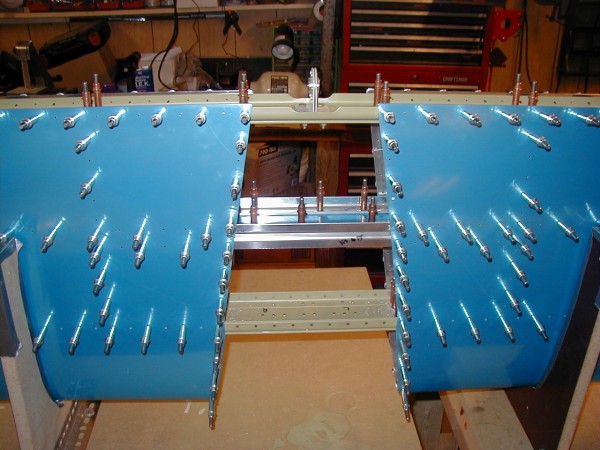

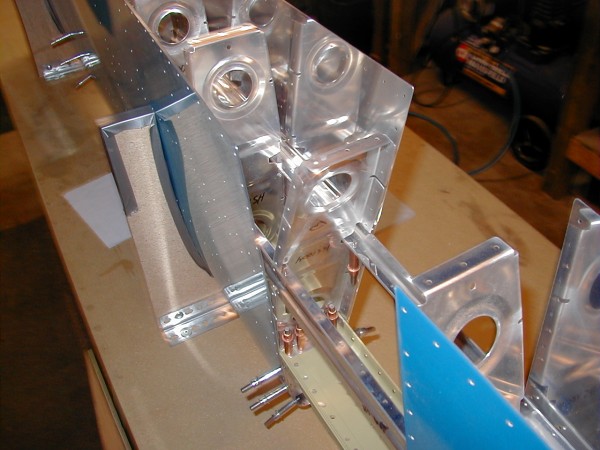

A Closer couple of shots of the center section.

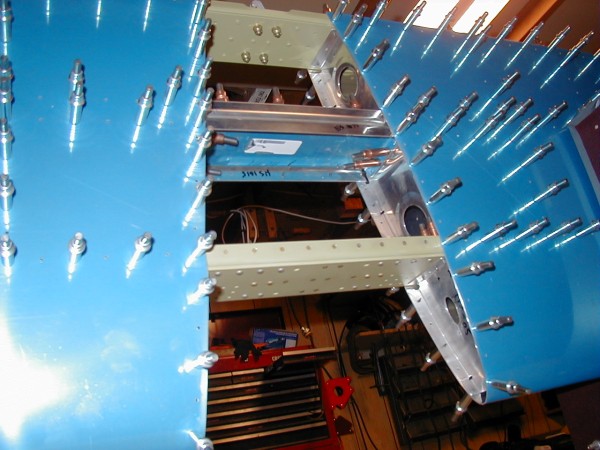

This one shows a couple of holes in the middle that need to be drilled by a right angle drill.  I got
a real cheap but well made Jacobs chuck right-angle drill kit from Harbor Freight for something
like $12.  Worked great.  I'll still buy the $150 kit for the tight-fit drill kit, but this worked for
this section.

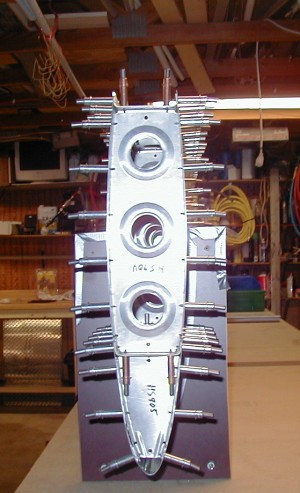

Can't see it by this shot, but if you look down the lightening holes, you can see a nice straight
Horizontal Stab!
